Using BioShell Tools and reference data

BioShell instances arrive with bioinformatics software and some reference data already installed. You don’t have to compile tools, manage dependencies, or track down container images before you can start.

What’s installed

Every instance comes with a core set of tools:

Tool Purpose
Python 3 General-purpose scripting, and the language much of bioinformatics is built on
R Statistical analysis and visualisation
JupyterLab Browser-based notebooks holding code, plots, and notes in one place
RStudio Browser-based development environment for R
Nextflow Runs reproducible, scalable analysis pipelines
nf-core Utilities and configurations for running nf-core pipelines
Globus Connect Personal Make your VM a Globus end point for easy data movement

Some of these are on your PATH and ready to type; others are modules you load first. To see everything available on your instance:

module avail

Then load what you need, for example module load jupyter or module load rstudio. Anything not listed, you can install yourself with Shelley.

How BioShell manages bioinformatics tools

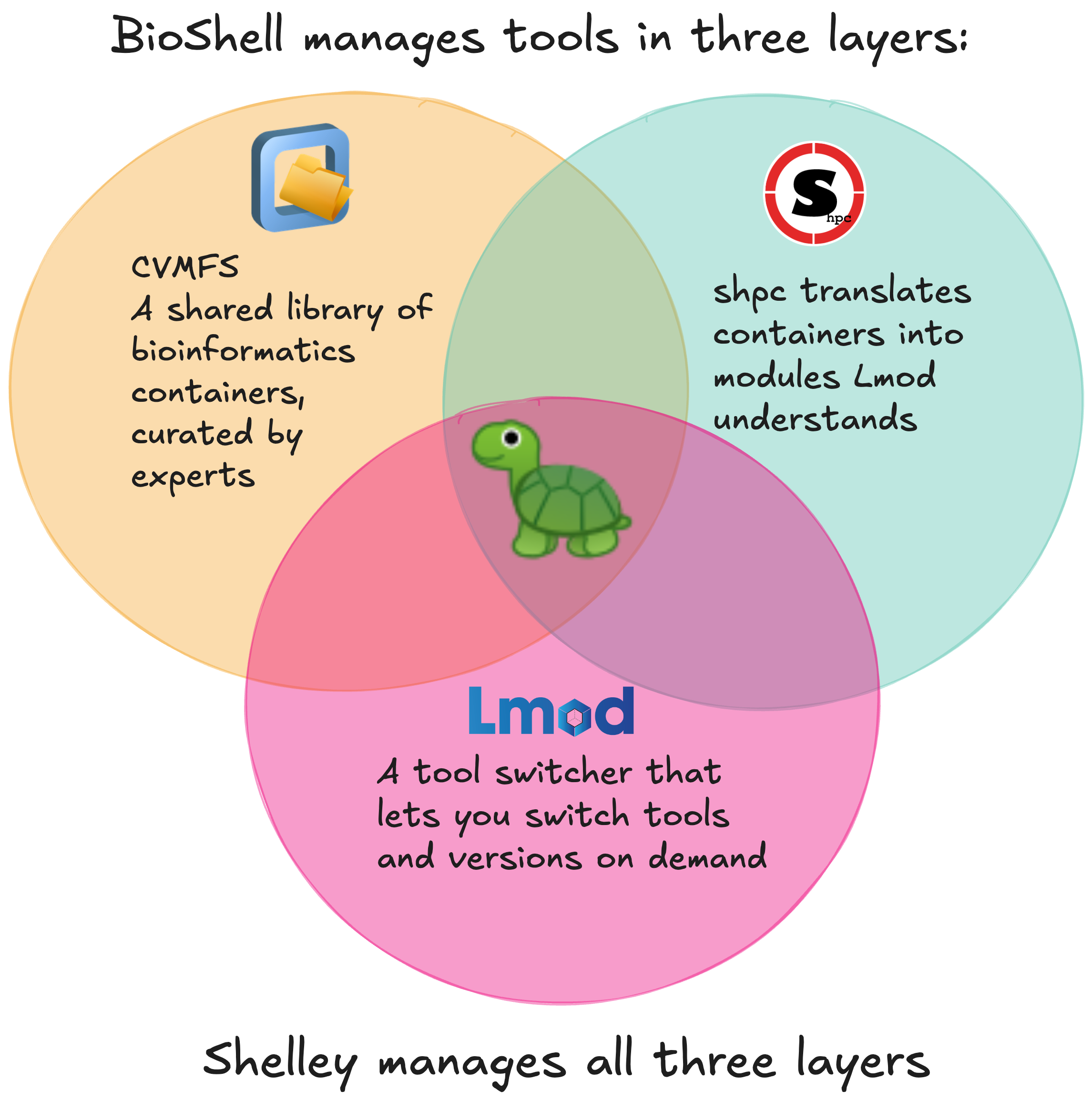

Bioinformatics often requires us to use many different software including command-line software, R and Python packages. BioShell gives you access to over 100,000 bioinformatics packages, managed in three layers for you:

  • CernVM-FS is a read only filesystem that acts as a repository for 13,000+ tools and 118,000+ versions from BioContainers. It is available in your BioShell VM at /cvmfs/. It looks like an ordinary folder, and files are fetched only when you use them, to help you manage your disk space.
  • sHPC packages containers in cvmfs into installable modules
  • Lmod is the system behind the module command you use to load and switch tools

You don’t need to undersand any of this to use BioShell because Shelley, BioShell’s command-line assistant, drives all three for you. She:

  • Searches the tool library
  • Picks the right container version
  • Creates any sHPC registry entry that is missing
  • Installs the module: one command to find a tool, one to install it

Shelley basic usage :turtle:

Shelley runs from the command line or in an interactive mode. It can be used to manage your bioinformatics tool containers. We currently only support command-line tools and are working on extending this functionality out to R and Python packages.

Run Shelley with:

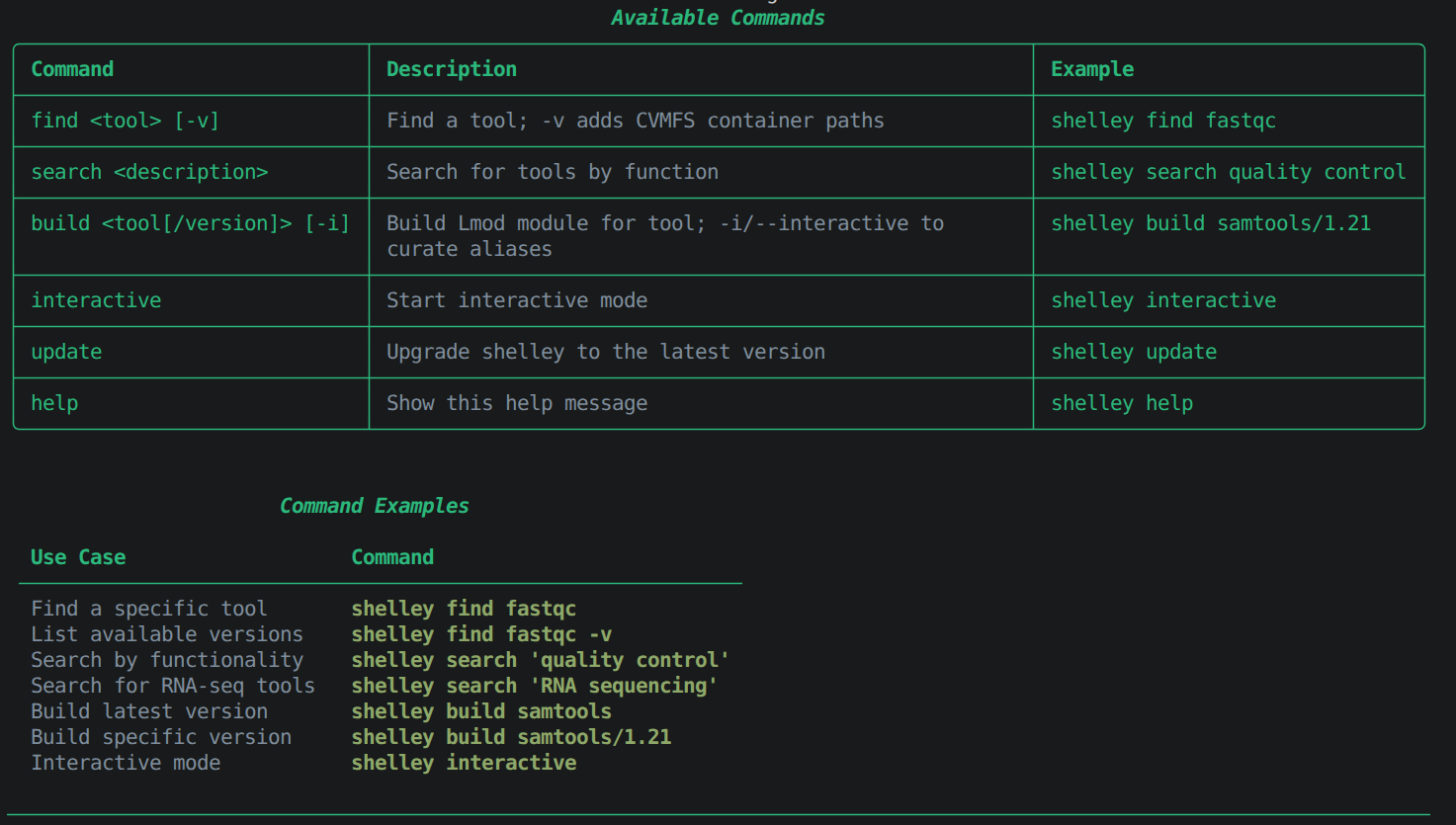

shelley help
Example output



From the command line:

shelley find <tool> # Look up a specific tool by name
shelley search "<function>" # Search by keyword or function
shelley build <tool> # Install the tool as a loadable module

In interactive mode:

shelley interactive # Launch Shelley in interactive mode

Interactive mode works the same way as the command line. The find, search, and build behave identically, except you type just the command name and its arguments, without prefixing every call with shelley.

Reference genomes and indexes

Reference genome builds and pre-built indexes, managed and maintained by the Galaxy Project, sit in two directories:

ls /cvmfs/data.galaxyproject.org/byhand/    # by genome build, then index type
ls /cvmfs/data.galaxyproject.org/managed/   # by index type, then genome build

To use a reference file in your analysis, pass its absolute path directly to your tool or pipeline config. For example, the human CHM13 T2T v2.0 FASTA file is at:

/cvmfs/data.galaxyproject.org/byhand/CHM13_T2T_v2.0/seq/CHM13_T2T_v2.0.fa

The T2T genome directory also includes pre-built indexes for common aligners:

ls /cvmfs/data.galaxyproject.org/byhand/CHM13_T2T_v2.0/
# bowtie2_index/  bwa_mem_index/  bwameth_index/  hisat2_index/  len/  rnastar/  seq/

Troubleshooting

CVMFS probe fails for a repository

The repository may be temporarily unavailable. Wait a moment and run cvmfs_config probe again. Contact Australian BioCommons support if the problem persists.

Module appears in module avail but will not load

Check that both shpc and singularity are loaded:

module list

sHPC requires Singularity to execute containers.

Shelley cannot find a tool

Try search with broader keywords, for example shelley search "alignment" instead of a specific tool name. If the container exists in CernVM-FS but Shelley does not index it, install the module manually with shpc install — see the sHPC user guide.
